A 350 MW IT campus on the northeast block of Pitchfork Ranch, Guthrie, Texas. Behind the meter. First 100 MW without the ERCOT queue.
The Gateway Groundwater Conservation District allows 49 acre-feet a year, so the plant rejects heat dry for 95.9% of the year and runs adiabatic pads the other 357 hours. Power is built on the ranch: 3 electrical islands. This design is not Uptime Tier III, and it does not file into a frozen queue.
First 100 MW of IT is the tranche Palo Duro can fuel on a rental aero bridge, in 23.5 months. The full campus is live in 45.4 months at a Class 4 P50 of $6,738M, excluding GPUs. Grid interconnection is Phase 3. First fire is on-site generation.
1. Take the optionStart the ALTA, the wells, and the Palo Duro capacity letter. Those three are on the critical path.
2. Rent first, own the campusRental aero is the bridge to month 23.5. The owned fleet is the $6,738M headline. Stopping at 100 MW is Alternative B.
3. Do not file the grid yetThe queue is frozen. A 350 MW large-load filing puts on the order of $35M at risk under proposed PUCT 25.194.

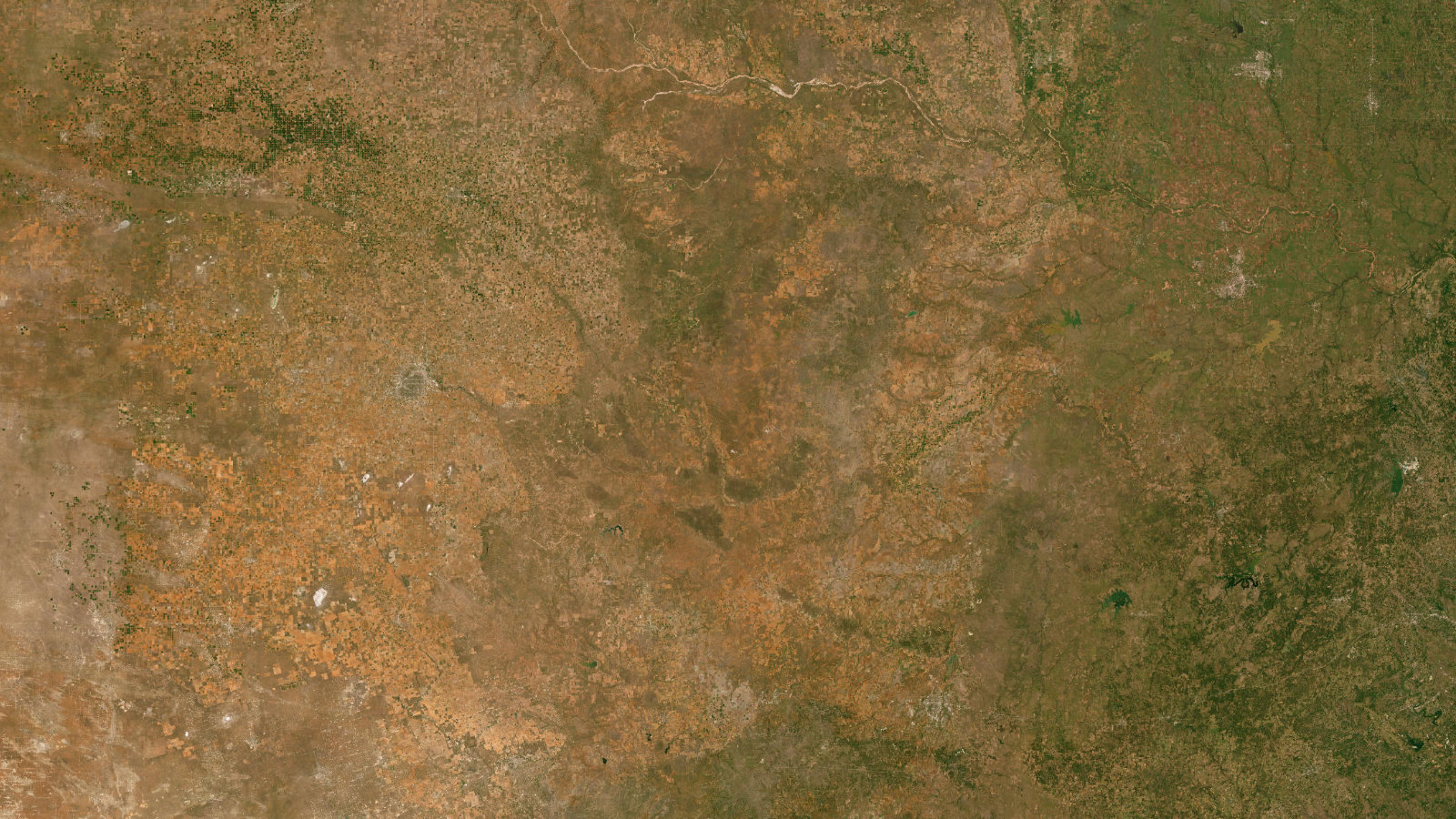

King County, with a Dickens sliver on the west edge. The campus pad is the flat upland of the northeast block: West Big Field and Clear Country. The Atlas land map is the record. Imagery is current satellite, not a survey. ALTA replaces the linework.
Figure 0.1. Northeast development block, Pitchfork Ranch. Atlas existing-conditions map.
