Appendices

Registers and tables

Headline tables, equipment lists, permits, and sources.

A. Headline data tables

Quantity	Value	Kind
it mw	350.00 MWConstraint	Constraint
first power it mw	100.00 MWPlan	Plan
facility mva	408.04 MVACalculated	Calculated
racks	1,844.00 racksCalculated	Calculated
capex p50 rental m	5,360.50 $MEstimate	Estimate
capex p50 owned m	6,738.10 $MEstimate	Estimate
usd per mw it rental	15.30 $M/MW-ITEstimate	Estimate
usd per mw it owned	19.30 $M/MW-ITEstimate	Estimate
ttp p50 mo	45.40 monthsEstimate	Estimate
ttp p90 mo	52.80 monthsEstimate	Estimate
ttp first power p50 mo	23.50 monthsEstimate	Estimate
ttp first power p90 mo	28.00 monthsEstimate	Estimate
pue	1.06 ratioCalculated	Calculated
pue mech only	1.02 ratioCalculated	Calculated
wue l per kwh	0.05 L/kWhCalculated	Calculated
availability target	1.00 ratioSelected	Selected
path efficiency pct	95.60 %Calculated	Calculated
cue kg per kwh it	0.59 kgCO2/kWh-ITEstimate	Estimate
psd ghg multiple	20.40 x thresholdCalculated	Calculated
co2 t per yr	1,528,071.00 tCO2/yrEstimate	Estimate

Facility load in this study is 372.74 MW, including 6.28 MW of mechanical from the hourly plant. That is the number PUE, the generation fleet, and the phase ladder use.

Load roll-up

Quantity	Value	Driver
Planning allocation	350.36 MW	1,844 racks at 190 kW
Continuous IT	350.36 MW	profile continuous ratings
IT peak (transient)	525.54 MW	30 s, absorbed by storage, not the transformer
Mechanical	6.28 MW	hourly plant model, mechanical PUE 1.0179
House	5.26 MW	1.5% of IT demand
Facility (boundary)	372.74 MW	PCU input + mechanical + house
Facility apparent	408.04 MVA	IT PF 0.990, support PF 0.9
Generation gross at site	422.7 MW	16 × 26.42 MW at 104.4 °F
Generation firm N+1	396.2 MW	largest machine tripped
Storage specified	140 MW / 75 MWh	grid-forming, on the collector

Load, thermal, and generation from the same basis as the body of this study.

B. Site maps and figures

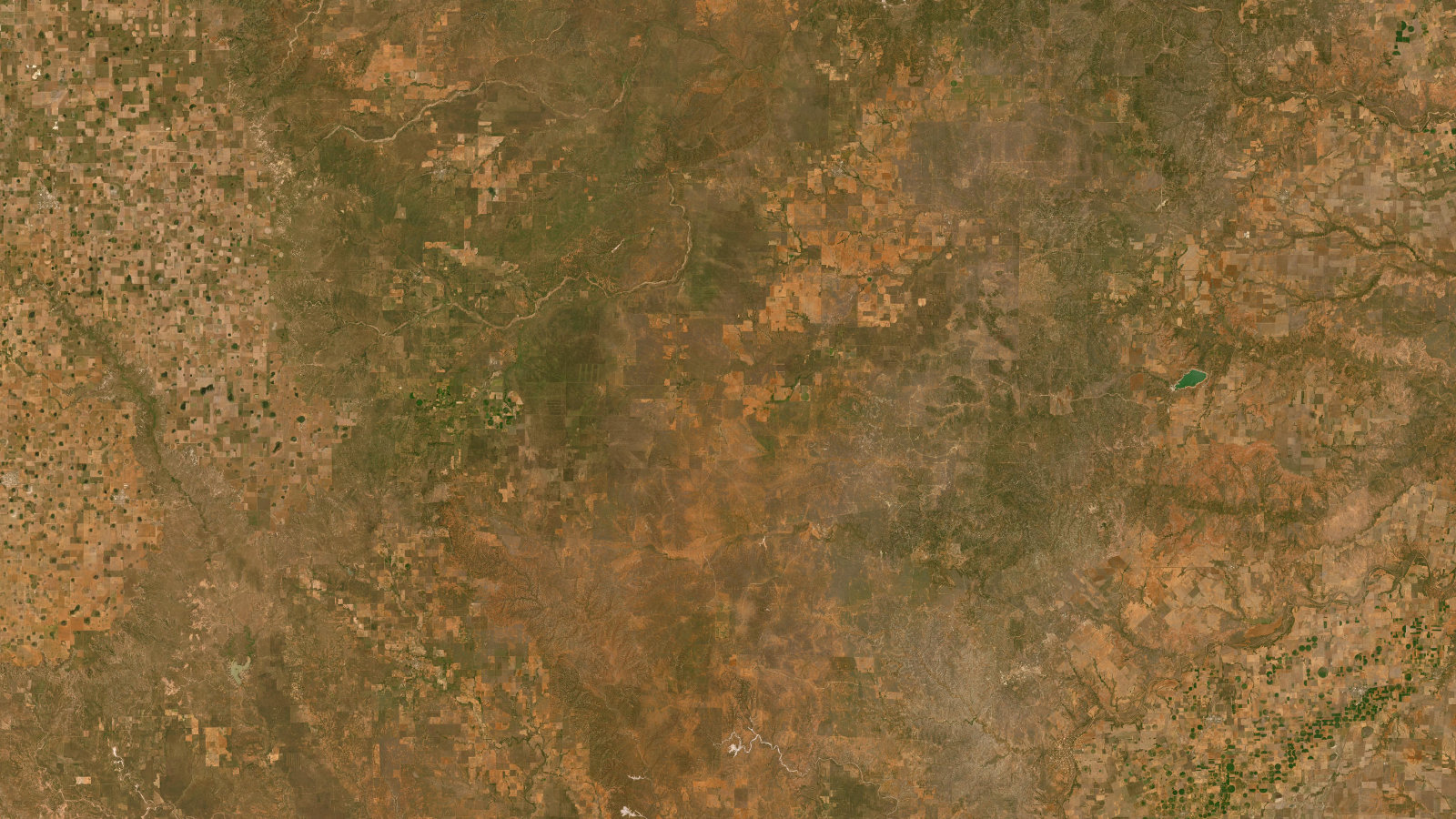

Northeast block. Same Atlas land applet as §2.

Roads and towns. US-83 Super 2; BNSF at Childress.

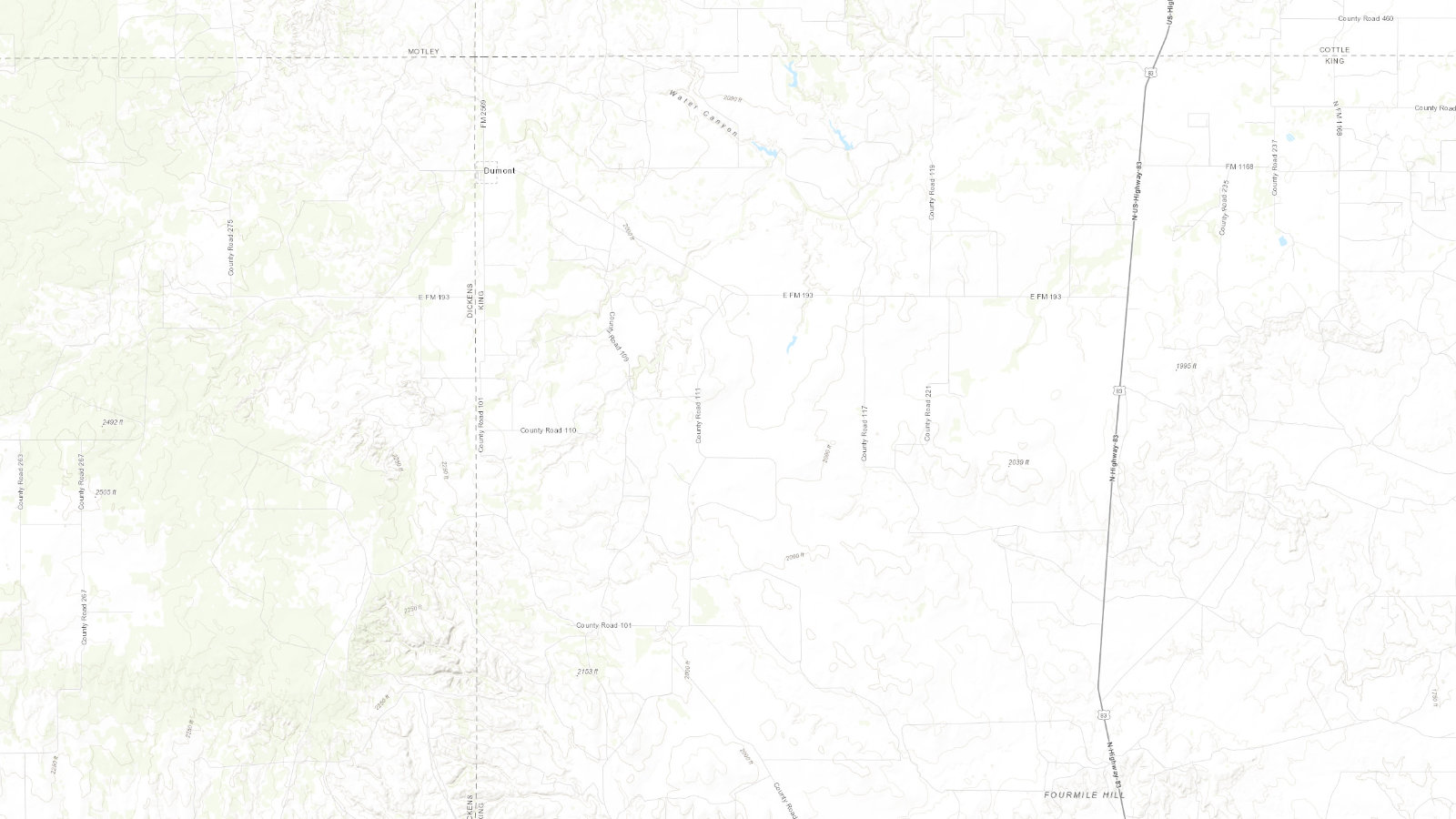

Topo of the northeast block. Upland pad, breaks off the south and east.

Northeast block schematic.

Campus reservations.

Single-line, one page.

Cost tornado, owned campus.

Time to first power and campus.

Alternatives.

C. Equipment summary

1,844 × NVIDIA VR200 NVL72 (Vera Rubin) (190/190/230 kW) across 3 × 117 MW zones
16 × GE Vernova LM2500XPRESS+G4 DLE at 26.42 MW site rating (34.5 MW ISO, 23.4% derate) · 422.7 MW gross / 396.2 MW firm N+1 · 3 collector sections
151 × CoolIT CHx2000 CDU at 2,269 kW (150 duty + 1 standby)
351 × Güntner V-shape VARIO GFD with hydroBLU, 24 fan at 3,299.8 kW (319 duty + 32 spare), 28 MW of fans
140 MW / 75 MWh grid-forming BESS in 15 containers on 0.5 ac
160 × 3,750 kVA padmount · 372 × Schneider Galaxy VXL 1,250 kW
Graph: 3,127 nodes, 3,644 circuits

NVIDIA rebranded NVL144 to VR200 NVL72: 72 Rubin GPU packages at 2,300 W each, 36 Vera CPUs. ~190 kW Max Q, ~230 kW Max P; TrendForce puts the shipping rack near 225 kW. Compute and NVSwitch trays are fanless, so essentially all of it lands in the coolant, and coolant flow is roughly double GB300. NVIDIA specifies 45 C liquid supply, which is what makes dry-side rejection work in West Texas. Standard in-rack PSUs at this generation; 800 VDC is optional and does not become the norm until Kyber. MGX rack contributed to OCP

Cooling plant and design conditions

Quantity	Value
Hours modelled	52,608 (6 yr)
Loop	W45 · 45/57 °C · PG25
CDU approach / cooler approach	4 K / 8 K
Dry-to-pad switch	33 °C (91.4 °F)
Adiabatic hours	357/yr · 4.1%
Dry-only cooler field	2,253 modules (6.4×)
Mechanical PUE / total PUE	1.0179 / 1.064
Water	116 AF/yr · 0.0467 L/kWh
ASHRAE 0.4% DB / WB	104.4 / 75.7 °F
Mean depression, hottest 1%	18.6 K
Elevation	610 m

Fuel

Quantity	Value
Heat rate	9,150 Btu/kWh
Annual generation	3,147,424 MWh
Annual fuel	28,799,036 MMBtu
Pipeline burn	78.9 MMcf/d
Fuel cost	$24.71/MWh · $77.8M/yr

Fire protection

Quantity	Value
Hall standard	NFPA 75 (IT equipment), NFPA 76 (telecom spaces), NFPA 72 (detection)
Hall sprinkler demand	475 gpm × 60 min = 28,500 gal
Fire areas	3 halls at 117 MW, 2-hour separation
Fire water storage	324,853 gal (1 AF) at 1,000 gpm
Fire water basis	132,000 gal code minimum × 4 h insurer × 1.35 campus factor
BESS standard	NFPA 855, IFC ch. 12, UL 9540A large-scale fire test
BESS yard	0.5 ac · 15 containers at 8 ft · 151 MWh/ac
BESS without a passing 9540A	125 groups

NFPA 1 / IFC as adopted by Texas
NFPA 13 sprinkler design
NFPA 20 fire pumps
NFPA 22 water storage
NFPA 70 / 70E electrical
NFPA 72 detection and alarm
NFPA 75 IT equipment
NFPA 76 telecommunications
NFPA 855 stationary energy storage
UL 9540A large-scale fire test

Reservations and design bases, not a code review. An FPE seals the performance-based design; the insurer will have its own opinion and it usually costs more than the code minimum.

Measured route	m
gen feeder	34
gen collector	2119.6
bess feeder	930.5
mv feeder	1977.2
lv feeder	16
pcu output	152.7
rack branch	16.8

D. Assumptions register

Frozen decisions first, then every default still marked Estimate or Selected. Outstanding items follow.

Decision	Value
`facility_it_mw` Authoritative campus gate. Hall count and rack count are computed from this, never the reverse. 100–133 MW IT is Phase 1 first-power on Palo Duro, a tranche of this campus, not the project. Phase 3 is the 345 kV cut-in of that campus. Phase 4 toward 3 GW is corridor optionality, not this compile (Galaxy already holds 1.6 GW on the node).	350	Constraint
`first_power_it_mw` First fire / first vest. Not the campus headline. Palo Duro nameplate caps BTM first power around 125–150 MW, not 350 MW.	100	Plan
`collector_sections` One 34.5 kV bus cannot carry 350 MW: machine contribution exceeds catalog MV interrupting ratings. 3 independent sections keep first-cycle duty in 63 kA gear. Losing one drops about 33% of IT. Not Uptime Tier III (no closed ties).	3	Selected
`hardware_profile` The plan names no GPU SKU. NVIDIA VR200 NVL72 (Vera Rubin) is the current high-density reference with published integrator ratings: planning 190 kW, peak 230 kW. Compute and NVSwitch trays are fanless, so 97% of rack heat leaves in coolant at a 45 C supply, which is the property that makes dry-side rejection viable here. main.tex golden fixture (GB200 NVL36x2 at 67 kW) is a 5 MW math test, not this campus.	vr_nvl72	Selected
`delivery_voltage_v` 415Y/240 V AC three-phase. 800 VDC path is specified in main.tex but deferred: product standards for >1 kV DC in buildings are immature.	415	Constraint
`redundancy` Unit N+1 with a transfer-capable reserve per fleet. 2N is a later leaf.	n1	Selected
`distribution` Radial 415 VAC. Rings lose Farivar–Low exactness; not this pass.	radial	Selected
`source_mode` Phase 1 has no utility. Grid interconnection is Phase 3 (queue frozen Aug 3, 2026; first utility MW P50 mid-2030).	island	Plan
`cooling` Fully dry / air-cooled / closed-loop as basis of design. Evaporative cooling is a closed option, not a slider. β_dry = 1.0.	air_cooled	Plan
`code_editions` King County has no building department (LGC Ch. 233). Insurer standards (FM 1-28, 1-34, 4470) are the de-facto envelope. Changing this field re-keys the check register.	{"nec":"2023","ibc":"2021","ifc":"2021","imc":"2021","ipc":"2021","iecc":"2021","tas":"2012"}	Selected
`phase1_pad_acres_program` Program acreage of the West Big Field pad (first-power tranche). Construction footprint across the first tranche is ~1,200 ac. Not the campus lot.	876	Plan
`phase2_pad_acres_program` Phase 2 campus pad. Combined with West Big Field = 3,261.0 ac compiled lot.	2385	Plan
`campus_pad_acres_program` Compiled lot. KMZ West Big Field ring scaled from centroid by sqrt(3261/773).	3261	Plan
`phase1_pad_acres_kmz_label` Source-map label. Do not use as the program figure. ALTA will replace both.	773	Record
`generation_phase1` First-power block only. Conflict resolved: Phase 1 narrative says rented 16 MW truck units; element detail says 6 × LM2500XPRESS-class. Electrical first-fire model is this 6-unit block. Not the campus fleet.	{"units":6,"class":"LM2500XPRESS","mw_each":34.5,"gross_mw":207,"firm_n1_mw":172.5}	Plan
`generation_campus` Campus electrical model is one machine class at the same firm MW as Atlas P2 (6 × LM2500XPRESS + Wärtsilä/Jenbacher recip halls). Physical conversion is a later leaf.	{"units":21,"class":"aero_equivalent","mw_each":34.5,"gross_mw":724.5,"firm_n1_mw":690}	Calculated
`bess_phase1` First-power storage. Not the campus spec.	{"mw":56,"mwh":25}	Plan
`bess_campus` Campus storage. Atlas P2 +100 MW is the program add; NVIDIA VR200 NVL72 (Vera Rubin) peak at 350 MW IT sets the spec.	{"mw":280,"mwh":125}	Calculated
`tceq_standard_permit_ceiling_mw` Phase 1 207 MW gross sits under the ~360 MW TCEQ standard-permit ceiling. Campus 724.5 MW gross is well above it, so case-by-case NSR sits on the Phase 2 critical path, not a later nice-to-have.	360	Record
`estimate_class` Class 4 (−30% / +50%). Tightens to Class 3 once sealed studies return. Conductor-and-busway dollar totals from the compiler catalog are not used as the project capex figure; see BOM notes.	4	Selected
`wue_basis` Air-cooled campus demand basis ~80–270 AF/yr per 100 MW (humidification, domestic, washdown). Evaporative 800–1,500 AF/yr per 100 MW is not supportable against King County MAG of 49 AF/yr.	dry	Plan

Gap register

ID	Datum	Status	Owner / blocks
G01	Single-owner surface control Pitchfork Land and Cattle Company, Delaware 1933. No liens in public indexes.	Record	TX SOS / county records
G02	ALTA/NSPS survey + Schedule B exceptions KMZ pasture linework is not a survey. Schedule B exceptions become exclusion polygons.	Pending	Licensed Texas surveyor (Hugo Reed / SAM class) Blocks: Platting, title insurance, Ω_build legal
G03	Mineral title runsheet + SUAs Texas mineral estate is dominant. Live drilling permit API 42-269-32650 sits in the block. Third-party minerals appear elsewhere on the ranch.	Pending	Landman + O&G counsel (Kuiper / Oliva Gibbs / Cotton Bledsoe class) Blocks: LOI / surface-use close
G04	Courthouse lien and deed search Neither county has an online index.	Pending	Title company / TexasFile
G05	Deed restrictions / covenants None found in searchable records; courthouse confirms.	derivable	Courthouse pull
G10	345 kV on the property Cottonwood–Nova Prime double circuit, ~2,896 MVA/ckt, <100 ft closest approach.	Record	HIFLD + owner KMZ; PUCT 55999
G11	Available fault kA and service MVA at POI In-loop fault estimate uses island subtransient (26.7 kA MV / 87.2 kA LV). Not authoritative for a sealed study. Infinite-bus is not used in island mode.	Pending	WETT screening + will-serve / ERCOT SSWG (NDA) Blocks: ETAP short-circuit seal (C03)
G12	Corridor headroom for 300-350 MW Cottonwood is 'reaching its limit'; Galaxy holds 1.6 GW approved on the same node.	Pending	WETT informal screening / ERCOT base case
G13	Islanded protection and stability study Compiler reports first-cycle magnitudes. Machine decrement, inverter control-law fault behaviour, and transient stability are out of compiler scope.	Pending	Power-systems PE Blocks: Relay settings, turbine procurement
G14	Construction power from co-op Temporary generators cover the gap either way.	Pending	South Plains EC / Tri-County EC parcel-level
G15	Hardware SKU / rack schedule from tenant Default NVIDIA VR200 NVL72 (Vera Rubin) (190 kW planning / 230 kW peak). Replace when a tenant supplies a rack schedule.	Estimate	Owner / offtaker
G20	Palo Duro uncommitted firm capacity Binding open season Jun–Jul 2025; results never published. 80,000 Dth/d may be fully subscribed.	Pending	Producers Midstream / Palo Duro Transmission (Matt Flory team) Blocks: Lateral FID, Phase 1 MW above ~50 MW
G21	FERC tariff / in-service date Certificate accepted 2026-04-07; no tariff or in-service notice through 2026-08-28.	Pending	FERC CP25-531 compliance filings
G22	Residue-gas quality spec Engines and turbines need it for fuel-gas conditioning design.	Pending	Pipeline operator
G23	Lateral route field survey 9.5 mi desktop alignment crosses zero mapped NHD flowlines. Field survey required.	Pending	Midstream survey
G30	Aquifer yield and TDS at the pad No pump-test data in the block. TWDB wells are stock/domestic 80–250 ft, Blaine/Whitehorse gypsum water.	Pending	Hydrogeologist; 2–3 test wells, 72-hr pump tests (~$150–300k) Blocks: Well permits, RO design, WUE guarantee
G31	Gateway GCD brackish-industrial appetite MAG 49 AF/yr is the fresh DFC framework. Brackish-only permit is an open legal question.	Pending	Gateway GM, Quanah
G32	Produced-water reuse volume nearby Construction/non-potable option only.	Pending	TCEQ beneficial-reuse + south-ranch operators
G40	Carrier-grade route verification Public maps show no long-haul through Dickens/King. Legacy WilTel/Lumen may follow BNSF at Childress.	Pending	FiberLocator / GeoTel + carrier KMZs Blocks: Tenant conversations (IRU/LOI)
G41	Carrier IRU / build commitment Two diverse laterals (Childress ~57 mi, Lubbock ~93 mi). Single-lateral reads as Tier-2-only.	Pending	Zayo / FiberLight / Cap Rock
G50	Geotechnical borings + karst geophysics Blaine gypsum karst: sinkholes documented in the outcrop. Building-area SSURGO shows zero gypsum in mapped horizons, which is still not a substitute for borings.	Pending	Terracon / Collier class Blocks: Foundations, IEEE 80 ground grid (C26)
G51	Wenner four-pin resistivity (IEEE 81) Couples to IEEE 80 touch/step (C26). No site resistivity exists.	Pending	Geotech / electrical PE
G52	H&H 2D (5/25/100-yr) No FEMA map. TWDB BLE by HUC-8. Ephemeral draws buffered 100 m pending AJD.	Pending	Civil hydrology PE (Parkhill class) Blocks: Pad FFE, detention, CWA 404
G53	USACE AJD / WOTUS Proposed WOTUS rule writes ephemeral draws out; still needs a determination to be bankable.	Pending	PWS + USACE Tulsa District
G54	Phase I ESA (ASTM E2247-23 rural) 180/365-day validity. Two legacy RRC permit locations sampled first in Phase II.	Pending	Environmental consultant
G55	IPaC official species list LPC delisted Feb 2026 but under status review. Texas horned lizard, monarch also relevant.	Pending	USFWS IPaC with drawn footprint
G56	THC Atlas / cultural survey THC Atlas is restricted. Antiquities Code can trigger if MMD/TIRZ is used. Section 106 via 404 nexus.	Pending	Licensed archaeologist
G57	ASCE 7-22 exact values at centroid Band known: ~105 mph, SDC A, tornado Ch. 32 for RC III/IV. Pull exact at 33.755, −100.449.	derivable	ASCE Hazard Tool
G58	NOAA Atlas 14 point precip Query at parcel centroid. Feeds hydrology.	derivable	PFDS CSV endpoint
G59	SSURGO linear extensibility / corrosion Building-area Carey/St. Paul: LE 3.4–4.5%. Steel/concrete corrosion class for C26.	derivable	NRCS Soil Data Access
G70	Superload bridge ratings US-82 / US-83 Watch South Wichita (US-83) and Salt Fork Brazos / Croton Creek (US-82). No rail in-county; nearest BNSF at Childress ~55–60 road mi.	Pending	TxDMV route survey Blocks: LPT / GSU delivery
G71	Hospital / ESD mileages and ISO PPC No hospital in King County. Stonewall Memorial ~35 mi; Childress Regional north. Confirm.	derivable	HHS/HRSA + ESD
G72	FAA Part 77 / DoD Clearinghouse Sheppard/Dyess training airspace. Triggered by stacks/towers >200 ft and plumes.	Pending	oeaaa.faa.gov; acq.osd.mil/dodsc
G80	Vendor quotations (xfmr, PCU, turbines, BESS, dry coolers) Compiler unit costs are public comparables, not quotes. LPT lead ~128 weeks (Wood Mackenzie Q2 2025).	Pending	OEMs / reps Blocks: Class 3 estimate
G81	Anchor tenant / offtaker PUCT 25.194 proposed ~$50k/MW security + $50k/MW non-refundable on a grid path. BTM path does not need this; tenant still gates fiber and generation FID.	Pending	Owner

E. Full permitting matrix

Permit	Agency	Statute	Trigger	Lead	Status
CWA §404 NWP 14/51/57 or individual Pending	USACE SWT (Red) / SWF (Brazos)	33 CFR 323	Fill in WOTUS	PCN 45–60 d; individual 6–18 mo	not started
ESA §7 / §10 Pending	USFWS	50 CFR 402	Federal nexus / take	30–135 d formal	IPaC not run
Air standard permit (Phase 1) Plan	TCEQ	30 TAC 116 / std permit	NG generating units under ~360 MW	weeks–months (Abilene-class)	file by month 3
Air NSR (Phase 2 fleet) Plan	TCEQ	30 TAC 116	Permanent fleet + BACT	6–12 mo	file early P1
TPDES CGP TXR150000 Plan	TCEQ	TXR150000	>1 ac disturbance	NOI on filing	SWPPP before work
Gateway GCD well permit Pending	Gateway GCD	Water Code Ch. 36	Production wells	district cycle	after pump tests
Surface water right (if any diversion) Plan	TCEQ	Water Code Ch. 11	Surface diversion; none planned on this dry campus	TCEQ cycle	not triggered unless a surface take is added
RRC T-4 lateral Plan	RRC	T-4	New gas lateral	months	Texas: no pre-construction delay claimed
FERC firm transport Pending	FERC	CP25-531 / tariff	Firm on certificated interstate	commercial	capacity MUST-ASK; tariff unfiled
ERCOT large-load (Phase 3) Record	ERCOT / PUCT / WETT	PURA §37.0561; 25.194	Load ≥75 MW	study cycle; ≥$100k fee	file at reopen
FAA Part 77 Pending	FAA	14 CFR 77	Stacks / towers	45+ d	if >200 ft
DoD siting Pending	DoD Clearinghouse	32 CFR 211	MOA/MTR proximity	30–90 d	Sheppard/Dyess
TxDOT driveway Plan	Childress District	Access Management Manual	US-83 access	district review	CR-117
TxDMV superload Pending	TxDMV	43 TAC 219	Transformer / turbine moves	per move	route survey MUST-ASK
Plat (separate for campus / gen / later solar) Record	King County Commissioners Court	LGC Ch. 232	Subdivision	commissioners court	no county building code
Antiquities / NHPA §106 Pending	THC / ACHP	Antiquities Code; 36 CFR 800	Public nexus / federal	survey-dependent	archaeologist
TPDES / TLAP discharge Pending	TCEQ	30 TAC 305	Wastewater, blowdown (dry plant still has RO reject)	months	after water chemistry
Private use network / GINR Plan	ERCOT	Protocols	Co-located generation; export	months to years	not this island; Phase 3 if export

Atlas study catalog

Phase	Study	Cost	Duration
phase0	Water test wells + 72-hr pump tests	$150–300k	2–3 months
phase0	Geotechnical borings + karst geophysics	$200–400k	2–3 months
phase0	Phase I environmental site assessment	$15–30k	4–8 weeks
phase0	Drainage (H&H) study	$75–150k	3–4 months
phase0	Mineral title runsheet	$50–150k	2–3 months
phase0	Cultural records review + survey	$25–75k	6–10 weeks
phase0	Waters of the US determination	$15–25k	3–6 months
phase0	Commercial fiber-map pull + carrier outreach	$5–15k	2–4 weeks
phase0	Heavy-haul route survey (US-82/US-83 bridges)	$50–100k	6–8 weeks
phase0	ALTA survey + title commitment	$100–250k	2–3 months
phase1	Islanded protection + stability study	$150–300k	3–4 months
phase1	Lateral route survey + crossing engineering	$100–200k	2–3 months
phase1	Battery fire-safety analysis (NFPA 855)	$50–100k	6–8 weeks
phase1	Stormwater + spill plans (SWPPP/SPCC)	$25–50k	4–6 weeks
phase2	Air dispersion modeling for the permanent fleet	$100–200k	3–4 months
phase2	Gas expansion engineering (compression vs loop)	$200–500k	4–6 months
phase3	Transmission screening with WETT (start now, informal)	minimal	ongoing
phase3	ERCOT interconnection studies	$100–300k fees + deposits	12–18 months

F. Full risk register

ID	Domain	Risk	P / impact	Mitigation	Owner
R1	commercial	Palo Duro fully subscribed / too small for campus	High · Caps BTM first power; campus needs a second lateral	Capacity ask day one; CNG/LNG as schedule bridge; do not size first power above what the letter supports; P2 gas is a separate FID.	Owner / midstream
R2	regulatory	Queue freeze hardens past 2030	High · Grid upside slips; BTM path unaffected	Phase 1 is islanded. Do not underwrite utility MW before a study window exists.	Counsel
R3	site	Blaine wells fail yield/TDS	Med · Import water or stay strictly dry (already BOD)	Test wells first; dry plant; MAG 49 AF/yr is not an evaporative budget.	Hydrogeo
R4	site	Gypsum karst under halls	Med · Relocate halls inside Ω_build	Building-area SSURGO shows zero gypsum in mapped horizons, but bore anyway. Avoid DQG breaks already excluded.	Geotech
R5	commercial	No carrier appetite for laterals	Med · Site is fiber-stranded; kills tenant	IRU conversations before tenant LOI. Two diverse laterals or do not claim dual-path.	Fiber
R6	site	Posted bridge on US-83 / US-82	Med · Detour or structure replace on LPT path	TxDMV route survey. Super-2 completes late 2028, before a 2029–31 heavy-haul window.	Logistics
R7	regulatory	Mineral SUA refused	Med · Accommodation doctrine; delay close	Runsheet + SUAs pre-LOI. Live permit API 42-269-32650 is in the block.	Landman
R8	regulatory	LPC relisted during status review	Low/Med · Seasonal windows, possible HCP	IPaC with drawn footprint before filing. Carry as Class-B scenario, not a clearance.	USFWS counsel
R9	technical	Collector sections have no closed ties (architecture)	Known · Losing one section drops about 33% of IT; not campus-black, not Tier III	3 independent 34.5 kV islands are how 350 MW stays in catalog switchgear. Closed ties/ring before any Tier language in an SLA.	Electrical
R10	supply	Padmount 40-week vs LPT 128-week class	Med · IT live slips if xfmr/PCU not ordered	This design uses 3.75 MVA padmounts, not 345 kV GSUs, until Phase 3. Approved alternates. Order in P0.	Procurement
R11	technical	800 VDC product / code gap	High if selected · Cannot seal; insurer pushback	415Y/240 is the hard gate this phase. 800 VDC is Alternative D, not the basis.	Electrical
R12	site	No FEMA flood map (Zone D)	Certain · Insurer and lender will not take desktop hydrology	Site-specific 2D H&H is a day-one workstream. Atlas 14 100-yr 24-h is 7.79 in at the centroid.	Civil
R13	site	Expansive soils / corrosion	Med · Foundation and grounding redesign	Carey/St. Paul LE 3.4–4.5%. IEEE 81 resistivity before C26 ground grid.	Geotech / electrical PE
R14	regulatory	Cultural resources via Antiquities / §106	Unknown · Survey delay if MMD/TIRZ or 404 nexus	THC Atlas is restricted. Commission the survey.	Archaeologist
R15	regulatory	Large-load security if a grid path is filed	High on grid path · ~$100k/MW at risk under proposed 25.194	Campus does not file until Phase 3. A 350 MW filing is about $35M posted. BTM is the hedge.	Finance / counsel

G. Glossary

Term	Meaning in this report
IT MW	Information-technology load at the rack. The hard gate in this design is the 350 MW Phase 2 campus (3 116.667 MW zones). First power is 100 MW, a tranche, not the project. Halls and racks are computed from this, never the reverse.
Facility MW	IT after conversion loss, plus mechanical, plus house, at the 34.5 kV collectors. This run is in the compiler dump (headline.facility_mw).
PUE	Power usage effectiveness: total facility energy / IT energy. This run: 1.064, of which 1.018 is the mechanical plant. Not a contractual guarantee.
WUE	Water usage effectiveness (The Green Grid WP#35), liters per kWh IT. This run: 0.05 L/kWh, 116 AF/yr, from the 4.1% of hours the coolers need adiabatic assist.
Time to power (TTP)	Months from option day. Reported as two distributions: first 100 MW IT, and 350 MW campus live. P10/P50/P90, not a date.
BTM	Behind-the-meter: on-site generation, no utility interconnection required to run.
Ω_build	Buildable area: parcel minus the union of exclusion polygons (title, pipeline, wells, WOTUS, cultural, acoustic, FAA).
AACE Class 4	Estimate class entitled to −30% / +50% (18R-97). Not a bid.
run_id	Hash of the sorted JSON payload. Every number on this site came from one solve with this stamp.
N+1	One spare unit per fleet, transfer-capable. 3 independent 34.5 kV sections: losing one drops ~33% of IT. Not Uptime Tier III.
Fit-class	main.tex A differentiable / G geometric / B scenario / D documentary / X procured licensed study. Printed in Appendix I. Not a claim that this design implemented every A-class vjp.
MAG	Modeled available groundwater. King County Blaine: 49 AF/yr (TWDB GAM Run 21-011).
NVIDIA VR200 NVL72 (Vera Rubin)	NVIDIA rack-scale GPU system. Planning 190 kW, peak 230 kW. Compute and NVSwitch trays are fanless, so 97% of rack heat leaves in coolant at a 45 C supply.
LM2500XPRESS	Aeroderivative gas turbine class, 34.5 MW each in this design. First power: six units, 207 MW gross / 172.5 MW firm N+1. Campus electrical model: 21 aero-equivalent units, 724.5 MW gross / 690 MW firm; Atlas P2 physical plant is aero + recip halls at the same firm MW.
JETI	Texas Jobs, Energy, Technology and Innovation Act (HB 5). Covers dispatchable generation and manufacturing; renewable generation and storage are excluded.
CUE	Carbon usage effectiveness (The Green Grid): kg CO2 per kWh IT. This run is a heat-rate × EPA NG emission-factor sketch, not a contractual 24/7 CFE number.
D01–D07	Documentary checks from main.tex Appendix L. Separate from electrical C01–C26. D01 is the completeness fixture.

H. Sources and data vintage

ID	What	Vintage	Where
S1	Desktop diligence memo	2026-08-28	pitchfork-atlas/DD_MEMO_2026-08-28.md
S2	NOAA Atlas 14 Vol. 11 v2 PFDS at 33.7551, −100.4491	2026-08-31	hdsc.nws.noaa.gov PFDS CSV
S3	TWDB GAM Run 21-011 MAG, King County Blaine	2022-11-14	twdb.texas.gov
S4	FERC CP25-531 Palo Duro certificate	2026-03-19 / accepted 2026-04-07	eLibrary 20260319-3061
S5	HIFLD vs owner KML; WETT PUCT 55999 Item 112 (345 kV on-site)	2026-08-28	DD memo claim 1
S6	Governor large-load pipeline freeze	2026-08-03	ERCOT M-A080326-01
S7	JLL / Turner & Townsend Data Centre Cost Index	2025–26	global shell-and-core $11.3M/MW
S8	NREL Cost Projections for Utility-Scale Battery Storage: 2025 Update	2025	energy ~$241/kWh, power ~$372/kW (2024$)
S9	E3 RECOST aero CT band	Q1 2026	$1,200–2,200/kW
S10	NVIDIA Vera Rubin / VR200 NVL72 OCP contribution and gigawatt AI-factory brief	retrieved 2026	190 kW Max Q / 230 kW Max P, fanless trays, 45 C liquid supply
S11	AACE 18R-97 / 44R-08	current	Class 4 accuracy; contingency practice
S12	Wood Mackenzie LPT lead times	Q2 2025	~128 weeks large power transformers
S13	USDA SSURGO TX269/TX125	Sep 2025	Carey/St. Paul building-area soils
S14	Electrical compiler (this workspace)	same run_id	compiler/ eight-stage radial 415 V island
S15	main.tex Rev 3.1	engineering contract	R-IMMUTABLE, checks C01–C26, completeness fixture
S17	pandapower 3.5.4 IEC 60909 (cmax) on worst 34.5 kV section	same run_id	dbo-spec/validate_lane.py
S18	Open-Meteo ERA5 daily archive at 33.76°N, 100.45°W	2024	archive-api.open-meteo.com, CC BY 4.0

Fact	Finding
ne block acres	23200 Owner KMZ parsed 2026-08-28; 26 pastures	Record
ownership	Pitchfork Land and Cattle Company (Delaware corp. 1933; ranch since 1883) TX SOS / county records, 2026-08-28	Record
corridor 345kv	Cottonwood–Nova Prime 345 kV double circuit, ~2,896 MVA/circuit, NE corner, <100 ft closest approach HIFLD vs owner KML; WETT PUCT 55999 Item 112	Record
queue freeze	ERCOT large-load pipeline frozen 2026-08-03; first utility MW P50 mid-2030 Governor directive 2026-08-03; ERCOT M-A080326-01; DD memo 2026-08-28	Record
palo duro	16-inch, FERC CP25-531 certificate 2026-03-19, 80,000 Dth/d firm, ~8 mi, RRC T-4 07201 FERC eLibrary 20260319-3061; RRC GIS 2026-08-28	Record
gateway gcd mag afy	49 TWDB GAM Run 21-011 MAG, Nov 14 2022, King County Blaine	Record
fiber today	Cap Rock Telephone Cooperative FTTH at Guthrie; ~20 Gbps purchased transit; no published long-haul in Dickens/King FCC BDC; Cap Rock network-performance disclosure 2026-08-28	Record
us83 super2	TxDOT Childress District Super-2 through King/Cottle, $46.8M, complete late 2028 TxDOT Childress District Profile, revised Jan 2026	Record
lpc status	Lesser prairie-chicken listings withdrawn Feb 2026; new status review open. Verify live in IPaC before filing. USFWS; DD memo 2026-08-28; main.tex L6	Record
no fema flood map	King and Dickens: no NFHL mapping (Zone D). Site-specific H&H is a day-one workstream. FEMA MSC / DD memo 2026-08-28	Record
population king	~265 Census; main.tex Appendix G	Record

I. How this study was prepared

Codes: NEC 2023, IBC 2021, IFC 2021. Estimate class 4 under AACE 18R-97. Time-to-power is a triangular CPM with 4000 outcomes. Tornado is one lever at a time on the owned-campus total. Per-section N+1 is used; unrepaired campus-wide busway totals are not quoted.

Classification of each item

Item	Class
Grading cut/fill	A
Water–energy (WUE, cost)	A
Acoustics (ISO 9613-2)	A
Availability (RBD)	A
Generation portfolio and dispatch	A
Emissions (CUE)	A
Transmission import (exploration)	A
Transmission import (filing)	X
Ground grid (C26)	A inputs, PS check
Buildable area buildable area	G
Inundation, WOTUS, cultural, well, pipeline masks	G
Facility layout	G
Telecom ring routing	G/D
Permitting critical path	B
Groundwater, air, water permits	B
Species / SB6 / WOTUS jurisprudence	B
Estimate class and CPM	B/D
Phase I ESA, wetlands, cultural, geotech	X
Surface use agreements	X/D
Buildings and BIM	D/G
Community and economic	D/B
Code-edition field	D

J. Coverage of required headings

13 populated · 18 partial · 7 outstanding of 38 headings.

Section	Heading	Status	Where / note
1 Executive	Overview	populated	§1.1 / front matter. 350 MW IT campus; 100 MW first power.
1 Executive	Integrated schedule (campus, substation, fiber, solar/BESS, gas, water, load ramp)	populated	§5.1–5.4. CPM tracks + staged energization. Solar is not this campus (JETI-excluded plat).
1 Executive	Team by discipline	populated	front matter. Roles, not a bid roster.
2 Regulatory	Federal / state / local jurisdictions	populated	§2.7.
2 Regulatory	Applicable code editions	populated	§2.7 / manifest code_editions. NEC 2023 … TAS 2012.
2 Regulatory	Zoning, metes and bounds, plats, ALTA, easements, abandoned ROW, re-plat	pending	§2.1 / studies. KMZ is not an ALTA. Separate plats for campus / gen / later solar are the strategy; survey does not exist.
2 Regulatory	Groundwater management	populated	§2.4. Gateway GCD; MAG 49 AF/yr Blaine.
2 Regulatory	Legislative-risk scenario matrix	populated	§6.2. SB6, queue freeze, LPC review, WOTUS, JETI split.
3 Existing	Transportation (state, regional, rail)	partial	§2.5. US-83 Super-2 late 2028 verified. No rail in King/Dickens. Bridge ratings are still to be confirmed.
3 Existing	Site vicinity	populated	§2.1 map. NE block cartoon; ALTA replaces it.
3 Existing	Vehicular circulation (TIA, driveway, frontage, rail crossings, haul routes)	pending	§2.5 / TxDOT. CR-117 access is the plan. Two-phase TIA, driveway spacing, superload path are procured.
3 Existing	Community services with drive distances	partial	§2.5. King population ~265; no hospital in-county; Childress ~55–60 mi. ISO rating is still to be confirmed.
3 Existing	Seismic	partial	§2.7 ASCE band. SDC A interpolated. Exact values at the centroid from ascehazardtool.org are still outstanding.
3 Existing	Climate (TMY, sunshine, precip, severe weather, wind rose, irradiance, NRI, hail)	partial	§2.6 Atlas 14. Atlas 14 queried at the centroid. TMY/NSRDB, wind rose, NRI, hail/roof FM 1-34 envelope not pulled, so contractual PUE uses a deadband until they are.
3 Existing	Soils	partial	§2.6. Carey/St. Paul LE 3.4–4.5% from SSURGO. Borings and IEEE 81 resistivity are still outstanding.
3 Existing	Topography and drainage	pending	§2.1 / studies. Pad described as <3% in Atlas. 2D H&H on a surveyed surface is procured.
3 Existing	Wetlands (delineation, dates, jurisdictional opinion)	partial	CIA / CWA 404. 100 m buffers modeled pending AJD. Desktop, not a delineation.
3 Existing	Land cover and habitat	partial	§2.6 species model. Desktop IPaC stand-in from FWS/TPWD public lists. Official IPaC still one afternoon once the pad is drawn.
3 Existing	Oil wells	partial	§2.1 / facts. Atlas: ~92 dry holes, zero active under the block. Live permit API 42-269-32650 is in the block. Runsheet is still outstanding.
3 Existing	Utilities and easements (electric, gas, telecom, pipelines, fiber)	partial	§2.2–2.5. 345 kV on the corner verified. Palo Duro ~8 mi verified. Fiber laterals are a plan. Easement polygons need ALTA.
3 Existing	Energy infrastructure (POI, N-0/N-1/P3/P6 import study, shift factors, upgrades)	partial	§2.2 WETT band. POI identified. Utility fault modeled as 20–40 kA (31.5 working). Sealed WETT study still NDA.
4 Masterplan	Narrative / buildable area / setbacks / platting	partial	§2.1, §3.2, §4.6. Ω_build is parcel minus Atlas exclusions, not a surveyed legal. Platting strategy is written.
4 Masterplan	Project scope (phases, tier, redundancy, WUE, cooling, energy stack, EMS/BMS, fiber, water, districts)	populated	§3. Tier III is not claimed. EMS/BMS is a later leaf (space in admin).
4 Masterplan	Basis of design (MEP narrative, equipment tables, core/shell, milestones)	populated	§3.3, Appendix C. Compiler equipment + WBS.
4 Masterplan	Phasing / circulation / parking / entries / security by phase	partial	§3.1, §3.6. Phasing compiled. Parking 13 ac reservation. TIA and security design are procured.
4 Masterplan	Renders	populated	§3.2. Photoreal visualizations (aerial + fence). Not a survey, not architecture.
4 Masterplan	Solar and BESS suitability	partial	§3.5. BESS is specified. Solar is a later plat and is JETI-excluded. Density study not run.
4 Masterplan	Utilities maps and energy integration (dispatch, switchover, EMS)	partial	§3.5. Dispatch priority is drawn. Switchover and EMS sequences are not a sealed study.
4 Masterplan	Legislation impact / special districts / economic-development amenity	partial	§4.6. Instrument list. Quantified tax model is not this Class 4.
5 Appendices (fixture)	Phase I ESA	pending	studies. ASTM E2247-23 rural. Commission.
5 Appendices (fixture)	Cultural desktop	pending	studies. THC Atlas restricted.
5 Appendices (fixture)	Critical-issues constraint matrix + permitting table	populated	§2.6 CIA / Appendix E. This run.
5 Appendices (fixture)	Sealed power study	partial	§6.6 / §7.2. Island estimator + ETAP-proxy band (±15% current). PE still seals.
5 Appendices (fixture)	Wetlands / ecological / WOTUS / NWP thresholds	pending	CIA. AJD and IPaC.
5 Appendices (fixture)	Hydrology and hydraulics (2D, 5/25/100-yr, depth, velocity, scour)	partial	§2.6. Atlas 14 depths at the centroid. 2D model is procured.
5 Appendices (fixture)	Site characterization (airports, eagles)	partial	FAA / species model. Part 77 if stacks >200 ft. Whooping crane flyway treated as lighting/guy-wire. IPaC still officializes eagles.
5 Appendices (fixture)	ALTA survey	pending	studies.
5 Appendices (fixture)	References	populated	Appendix H.

K. Deliverables register and division of responsibility

Deliverable	Milestone	Emitted by	Status
Single-line diagram electrical	30/60/90/IFC	solver (draft)	SVG one-line; section-aware campus is four islands.
Load schedule, equipment, BOM electrical	30–IFC	solver	Appendix C + BOM table. Catalog dollars are comparables.
Cable and conduit schedule electrical	60–IFC	solver	Measured routes + circuit enumeration. Conductor $ not used as project capex.
Short-circuit and coordination electrical	60–IFC	solver draft; PE seals	Island first-cycle + TCC heuristic. ETAP is the seal.
Arc-flash study electrical	90–IFC	PE	IEEE 1584 audit in-loop. Worst incident in this design is in §7.2.
Ground-grid study (C26) electrical / civil	60–IFC	PE	IEEE 81 resistivity not pulled. Check is still outstanding.
Transmission import study transmission	30–IFC	PE (file); zap lane is exploration only	Not filed. POI identified.
Buildable-area and grading civil	30–IFC	solver draft; PE seals	Reservations on scaled KMZ. No cut/fill.
Drainage and detention civil	60–IFC	PE	Atlas 14 only.
Water and fire-water plumbing / fire	60–IFC	solver draft; PE seals	Dry WUE band. V_fire = Q·t; Q from IFC B is still outstanding.
Acoustic study environmental	30–90	solver; NoiseModelling check	Not computed. No vendor source levels.
Phase I ESA, wetlands, cultural, ecological environmental	due diligence	licensed providers	Commission list in §9.2.
Architectural / structural sets architecture / structural	10–IFC	human, from manifest quantities	Space program acres only. No IFC.
Estimate, CPM, risk register PM / cost	each	solver + human	Class 4, 4,000-draw TTP, ISO 31000 register.
Permitting matrix PM	continuous	solver + human	Appendix E. Lead times are placeholders (D03).
Completeness and reconciliation (D01–D07) QA	each run	solver	This appendix.

Party	Owns
Owner	Land close, Palo Duro capacity, fiber IRUs, offtake, incentives, air-permit applicant, PE hire
EPC / national DC builder	Pad, halls, MV/LV, dry plant, commissioning Levels 1–5, HSE, as-builts/COBie
Midstream EPC	9.5 mi first lateral; P2 second feed and compression
Generation OEM / packager	Rental bridge then owned aero-equivalent + recip halls; BESS GFM / NFPA 855
TSP / ERCOT (Phase 3)	345 kV cut-in, large-load study, metering. Not on the first-power path.
Co-op (construction power)	Will-serve for construction only. South Plains EC or Tri-County EC; parcel-level confirmation is still outstanding.
Licensed PEs	Sealed S/C, coordination, arc-flash, H&H, structural, air package, ground grid (C26)
This tool	Class 4 drafting aid. run_id is an audit stamp, not a seal.

L. Documentary checks and electrical C-register

ID	Check	Status	Detail
`D01`	Every completeness-fixture heading populated or outstanding	pass	13 populated, 18 partial, 7 outstanding of 38 headings.
`D02`	Quantity reconciliation: one run_id, no divergent restatements	pass	No superseded quantity appears in any component. Every displayed number resolves through report.json.
`D03`	Permit-matrix coverage: agency, statute, lead, status	pass	18 rows. Lead times are placeholders until agency-sourced.
`D04`	code_editions set and register clauses re-keyed	pass	NEC/IBC/IFC/IMC/IPC/IECC/TAS are a manifest field.
`D05`	Every exclusion in Ω_build traces to a source polygon and layer	partial	Exclusion list is sourced. Acoustic buffer is now a modeled contour, not a blank. Polygons remain Atlas, not ALTA.
`D06`	Every non-core item carries a fit-class and a source with access note	partial	Kind chips on quantities. Fit-class A/G/B/D/X is named in the fixture, not on every WBS line.
`D07`	Every time-sensitive number carries an as-of date and refresh flag	pass	as_of 2026-08-31 on headline quantities.

Code checks C01–C26 live in §7.2. 800 VDC clauses C19–C23 are n/a on this campus.

M. Bill of materials, fault study, arc-flash

BOM item	Qty	Unit $	Total $	Lead
Padmount transformer Public comparable, 34.5 kV quote required	160 3750 kVA	148,106	23,696,960	40
Power conversion unit Budget allowance per kW	372 1250 kW	250,000	93,000,000	40
Conductor and busway Manufacturer-neutral catalog	3644 runs	-	110,275,223	-
Overcurrent devices Standard trip ratings, budget cost	3644 each	-	24,096,048	-
Total Planning estimate, not a quotation	- -	-	251,068,231	-

Catalog conductor/busway dollars are comparables, not the project capex line. Halls+MEP is the Class 4 campus number.

Fault bus (collapsed)	Qty	kV	Isc kA	Peak kA	Limited by
LVBUS-HOUSE-001	3	415	86.6	204.3	3750 kVA transformer at 5.75%Z
LVBUS-IT-001	134	415	86.6	204.3	3750 kVA transformer at 5.75%Z
LVBUS-MECH-001	14	415	86.6	204.3	3750 kVA transformer at 5.75%Z
MVBUS-01	3	34500	26.5	67.8	source and collector impedance
ZBUS-001-training_a	369	415	5.3	10.9	inverter limit, 1250 kW unit

Arc-flash bus	Qty	Incident cal/cm²	PPE	Cleared by
LVBUS-HOUSE-001	151	17.8	3	C-SECONDARY-0155
MVBUS-01	3	11.0	3	C-GEN-COLLECTOR-0006
ZBUS-001-training_a	369	1.6	1	C-PCU-OUTPUT-0004

Coordination pairs (worst margins)

Bus	Upstream	Downstream	Fault kA	Margin s	Result
ZBUS-001-training_a	C-PCU-OUTPUT-0004	C-RACK-BRANCH-0001	5.3	+0.17	SELECTIVE
MVBUS-01	C-GEN-COLLECTOR-0006	C-MV-FEEDER-0001	26.5	+0.35	SELECTIVE
LVBUS-HOUSE-001	C-SECONDARY-0155	C-HOUSE-BRANCH-0001	86.6	+0.37	SELECTIVE
LVBUS-IT-001	C-SECONDARY-0001	C-LV-FEEDER-0001	86.6	+0.37	SELECTIVE
LVBUS-MECH-001	C-SECONDARY-0138	C-MECH-BRANCH-0001	86.6	+0.37	SELECTIVE

Heuristic time-current curves on the island estimator. ETAP/SKM is the sealed study.

N. CIA, legislative scenarios, exclusions

Mirrored from §2.6–2.7 so a reader who starts in the appendices still sees them.

CIA topic	Finding	Next
T&E / habitat Estimate	LPC listings vacated; status review open. Horned lizard state-threatened. Whooping crane flyway is a lighting and guy-wire issue. Desktop from FWS/TPWD, not official IPaC.	Official IPaC on the drawn pad. One afternoon. HCP option if LPC returns.
Cultural / Antiquities / §106 Pending	THC Atlas restricted. Public nexus (MMD/TIRZ or 404) can trigger survey.	Commission archaeologist.
Floodplain Estimate	King/Dickens unmapped (Zone D). Atlas 14 100-yr 24-h = 7.79 in at centroid.	Site-specific 2D H&H 5/25/100-yr.
Wetlands / WOTUS Pending	Ephemeral draws. 100 m no-build on Cottonwood Creek and Buford Branch pending AJD. SWT vs SWF split by drainage.	Delineation + AJD. NWP vs individual is the threshold.
Slopes / grading Pending	Atlas: pad <3%. Cut/fill and FFE are not computed.	3DEP/ALTA surface; grading program after H&H.
Prime farmland Pending	Building-area SSURGO is Carey loam / St. Paul silt loam. Farmland classification not pulled as a legal FPPA finding.	NRCS CPA-106 if a federal nexus exists.
Hazardous materials / O&G legacy Pending	~92 dry holes, zero active under the block. Live permit API 42-269-32650 in the block. Two RRC locations flagged for Phase II in the study list.	Phase I ESA (E2247-23) then Phase II on hits.
Acoustics Estimate	ISO 9613-2 far-field. With OEM silencers, 50 dBA night holds at ~400 m. Without silencers the contour extends much farther.	OEM octave-band Lw. Silencer cost is inside owned generation, not a new WBS.
Airspace / eagles Estimate	Sheppard/Dyess training airspace. Part 77 if stacks/towers. Whooping crane is a flyway lighting issue.	FAA OE/AAA if stacks >200 ft; official IPaC includes eagles.

Legislative item	If	Then
ERCOT large-load queue freeze (Abbott 2026-08-03) Record	Stays frozen past 2027	No utility MW before ~2030 P50. Campus is BTM.
SB6 / proposed PUCT 25.194 security Plan	Filed as written	~$50k/MW posted + $50k/MW non-refundable. 350 MW is about $35M at risk. Do not file until Phase 3.
LPC status review Record	Relisted during design	Seasonal windows, possible HCP. Carry as Class-B, not a clearance.
WOTUS jurisprudence Pending	Draws become jurisdictional	404 individual vs NWP. Buffers already carried pending AJD.
JETI (HB 5) eligibility split Plan	As written	Gas plant and campus may qualify. Solar/BESS plat does not. Separate plats.
King County MAG 49 AF/yr Record	Unchanged	Evaporative cooling is closed. Dry campus still needs brackish or import water for the 116 AF/yr band.
No county commercial building code Record	Unchanged	TDLR + insurer (FM) are the envelope. Code editions are a manifest field.

Exclusion	Rule	Source
Ephemeral drainages Pending	100 m no-build on Cottonwood Creek and Buford Branch pending AJD	Atlas environmental elements
Gypsum / DQG breaks Record	Building-area SSURGO horizons show zero gypsum; breaks already excluded from Ω_build cartoon	SSURGO TX269/TX125
Wells / live permit Record	Setbacks from RRC locations; live permit API 42-269-32650 in the block	RRC GIS / DD memo
Pipelines Pending	Consultation zone; not a surveyed easement polygon	PHMSA/RRC; ALTA will replace
Title / minerals Pending	Schedule B exceptions become exclusions once ALTA exists. Mineral estate is dominant.	Texas accommodation doctrine
Acoustic Estimate	50 dBA night contour with 15 dB OEM silencers ≈ 400 m from the island. Without silencers ≈ 2.7 km, which is a pad impact.	ISO 9613-2 model; OEM Lw still confirms
FAA / airspace Pending	Part 77 if stacks or towers exceed notice criteria	14 CFR 77
345 kV ROW Record	Cottonwood–Nova Prime on the NE corner; no-build inside the existing ROW	HIFLD vs owner KML

Registers and tables

#A. Headline data tables

Load roll-up

#B. Site maps and figures

#C. Equipment summary

Cooling plant and design conditions

Fuel

Fire protection

#D. Assumptions register

Gap register

#E. Full permitting matrix

Atlas study catalog

#F. Full risk register

#G. Glossary

#H. Sources and data vintage

#I. How this study was prepared
